Stainless steel weld cleaner · MAHE
HyperCleaner ST Speed
Powerful inverter delivering up to 2400 W when polishing (100 % duty cycle).
Key technical data
- Maximum output current
- 65A
- Mains voltage
- 230V, 50/60Hz
- Mains fuse
- 16A
HyperCleaner ST Speed by MAHE. VES-TECH Swiss agrees delivery and collection in Switzerland and Liechtenstein for each order. We handle commissioning, maintenance, repairs at the partner workshop in Herisau and warranty claims.
Controls and equipment
Features
- Powerful 2400 W inverter power source
- MAHE brush protection system
- Cleaning, polishing, marking and galvanising
- Synergic program for all processes
- Environmentally friendly and safe cleaning

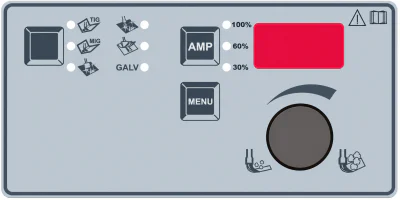

Control panel
HyperCleaner ST Speed: control panel
Technical data
Technical data
| Model | HyperCleaner ST Speed |
|---|---|
| Mains voltage | 230V, 50/60Hz |
| Mains fuse | 16A |
| Maximum output current | 65A |
| Output voltage range | 5 - 36V |
| Duty cycle at maximum current (40 °C) | 100% |
| Maximum power | 2400W |
| Dimensions | 315x170x385mm |
| Weight | 17kg |
| Degree of protection | IP23 |
| Conformity marking | CE |
| Safety class | S |
Power by operating mode according to the operating instructions, section 7.1 (printed page 15): polishing maximum 2400 W at 100 % duty cycle; cleaning maximum 1100 W at 100 % duty cycle. The 2400 W figure denotes maximum polishing power.
Equipment
Compatible accessories
Rapid R1 cleaning electrolyte
Fast-acting cleaning electrolyte for stainless steel welds.
RP1 paste cleaning electrolyte
Paste cleaning electrolyte for vertical surfaces and overhead work.
P1 polishing electrolyte
Electrolyte for electropolishing and pickling stainless steel.
M1 marking electrolyte
Electrolyte for electrochemical marking of metal.
Neutralit N1
Neutraliser for stopping and neutralising the process after cleaning.
MHCT 01
Trolley designed specifically for cleaning systems.
Electrode cable 25–90 mm²
Electrode cable for HyperMIG X, EcoMIG, MMS and Delta welding systems.
Work return cable 25–90 mm²
Work return cable for HyperMIG X, EcoMIG, MMS and Delta welding systems.
